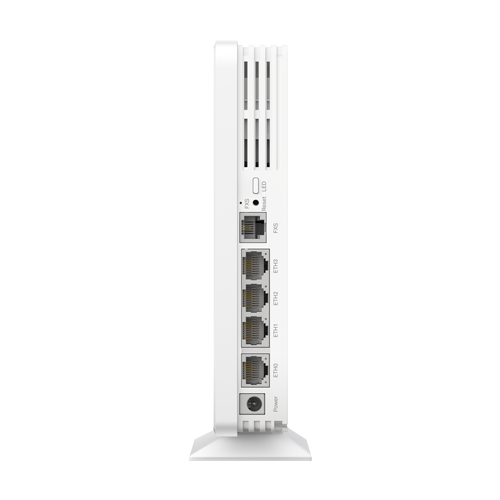

Access Point Wi-Fi 6, AX1800 Dual-Band, 1 x GPON, 1 x FXS, 4 x RJ45 1G, PoE Out - TP-Link Omada
Access Point Wi-Fi 6, AX1800 Dual-Band, 1 x GPON, 1 x FXS, 4 x RJ45 1G, PoE Out - TP-Link Omada
Access Point Wi-Fi 6, AX1800 Dual-Band, 1 x GPON, 1 x FXS, 4 x RJ45 1G, PoE Out - TP-Link Omada
Access Point Wi-Fi 6, AX1800 Dual-Band, 1 x GPON, 1 x FXS, 4 x RJ45 1G, PoE Out - TP-Link Omada
Access Point Wi-Fi 6, AX1800 Dual-Band, 1 x GPON, 1 x FXS, 4 x RJ45 1G, PoE Out - TP-Link Omada

Access Point Wi-Fi 6, AX1800 Dual-Band, 1 x GPON, 1 x FXS, 4 x RJ45 1G, PoE Out - TP-Link Omada
EAP610GP-Desktop

Autentificate pentru pret
login

Access Point-ul are urmatoarele caracteristici cheie:

  • Wi-Fi 6 Dual-Band AX1800: 1201 Mbps (5 GHz) si 574 Mbps (2.4 GHz);
  • 1× Port GPON: Viteze ridicate si distante mari de instalare;
  • 1× Port FXS RJ11 si 4× Porturi Gigabit RJ45;
  • Suport PoE Out: Unul din porturile RJ45 dispune de PoE Out 802.3af;
  • O fibra pentru multiple servicii: Internet prin cablu si wireless, telefonie fixa, VoIP si servicii video HD;
  • Apeluri VoIP: Suport pentru multiple conturi VoIP si numeroase functii pentru apeluri;
  • Usor de configurat: One-Click Pairing si Automatic Adoption;
  • Management centralizat via Cloud: Integrat in platforma Omada SDN.
  • Producator TP-Link Omada
  • Frecventa 2.4GHz, 5GHz
  • Standard Wi-Fi 802.11b/g/n/a/ac/ax
  • Viteza transmisie 2.4GHz: 574 Mbps; 5GHz: 1201 Mbps
  • Antena 2.4GHz: 2 x 5 dBi; 5GHz: 2 x 4.5 dBi
  • Putere transmisie Max. 27 dBm
  • Capacitate clienti 100+
  • Interfata 1 x GPON, 1 x FXS, 4 x RJ45 Gigabit (1 x PoE Out)
  • Tip port GPON SC-APC
  • Standard GPON ITU-984.x, G.988, Class B+
  • Viteza date GPON Upstream: 1.244 Gbps; Downstream: 2.488 Gbps
  • Wave Length GPON Tx: 1310 nm; Rx: 1490 nm
  • Tip fibra GPON 9/125 um Single mode
  • Lungime max. cablu GPON 20 km
  • Tensiune alimentare 53.5V DC 0.81A
  • Consum Max. 17.3W
  • Dimensiuni 175 mm x 140 mm x 33 mm
  • Temperatura de functionare 0°C ~ +40°C
  • Montaj Desktop, pe perete

Documente si programe

Nume Fisier
Specificatii tehnice producator (EN)_EAP610GP-Desktop Specificatii tehnice producator (EN)_EAP610GP-Desktop_13525.pdf Download
Manual scurt de instalare (EN)_EAP610GP-Desktop Manual scurt de instalare (EN)_EAP610GP-Desktop_13525.pdf Download
Manual de instalare si configurare (EN)_EAP610GP-Desktop Manual de instalare si configurare (EN)_EAP610GP-Desktop_13525.pdf Pentru download autentificati-va!
Certificat de conformitate (EN)_EAP610GP-Desktop Certificat de conformitate (EN)_EAP610GP-Desktop_13525.pdf Pentru download autentificati-va!
