DS-7108HUHI-K1(S)
DS-7108HUHI-K1(S)
DS-7108HUHI-K1(S)

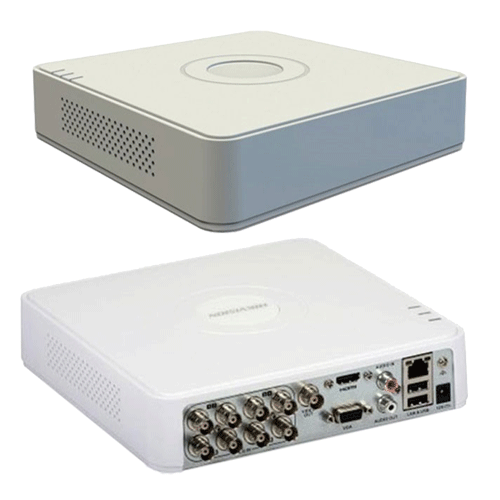

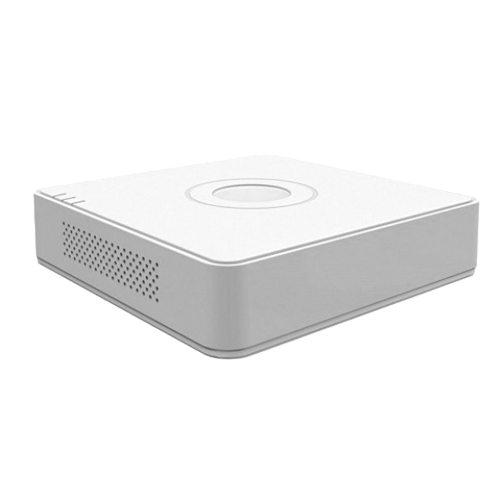

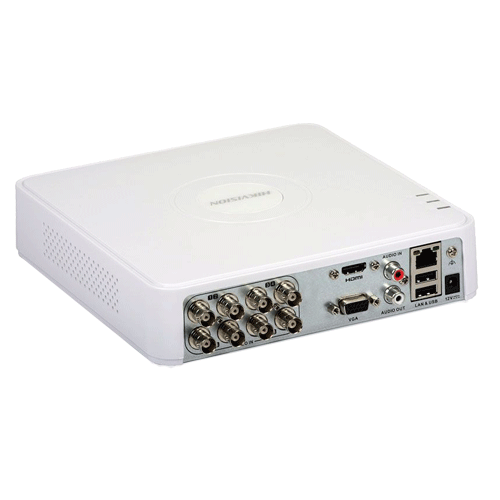

DVR 8 canale video 8MP, AUDIO HDTVI over coaxial - HIKVISION
DS-7108HUHI-K1(S)

Inregistrator Video Digital - Hikvision, compresie H.265 Pro + /H.265 / H.264, suporta maxim 16 canale video: 8 camere analogic HD cu rezolutie de pana la 8 MP + 8 canale IP cu rezolutie max. 8MP, 8 intrari audio HDTVI over coaxial (audio si video pe acelasi cablu coaxial sau UTP), 1 intrare audio analogic RCA, intrare semnal HDTVI / HDCVI / AHD / CVBS auto-adaptiva, rezolutie de pana la 8 MP la înregistrare, Iesire HDMI rezolutie 4K /VGA - 1080P, capacitate stocare HDD pana la 6T (neinclus).

  • Model / producator HIKVISION
  • Inregistrare 8 MP@8fps, 5 MP@12fps, 4 MP@15fps, /3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps
  • Camere suportate HDTVI, AHD,CVI 8MP / 5MP /4MP /3MP /1080P/720P; Analog + 8 ch. IP max 8MP;
  • Compresie H.265+/H.265/H.264+/H.264
  • Redare 1-8 canale sincronizate
  • Intrari 8 x BNC; 1 x audio, LAN 10/100/1000, 2xUSB; RS485
  • Audio IN 8 x audio HDTVI over coaxial, 1 x analogic RCA
  • Iesiri HDMI 4K (3840 × 2160), VGA (simultan); 1 audio
  • Stocare 1 x HDD SATA max. 6 TB
  • Stream 8MP/5MP/4MP/3MP/1080P/720P/WD1/D1
  • Alarma IN/OUT Nu are
  • Alimentare 12V DC
  • Consum 15W (fara HDD)
  • Dimensiuni 285 × 210 × 45 mm

Documente si programe

Nume Fisier
Specificatii tehnice DS-7108HUHI-K1 Specificatii tehnice DS-7108HUHI-K1.pdf Download
