Home Supraveghere video Inregistratoare video - DVR

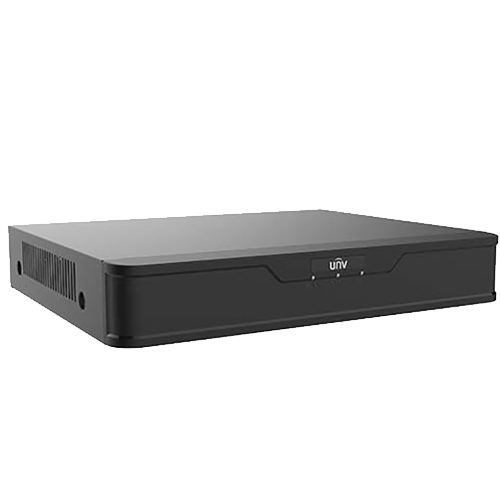

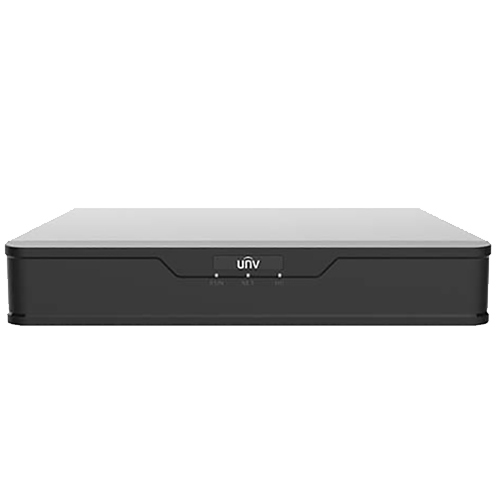

XVR301-08G3
XVR301-08G3
XVR301-08G3

XVR Hibrid, 8 canale AnalogHD 5MP lite + 4 canale IP 4MP, Audio over coaxial, H.265 - UNV
XVR301-08G3

Autentificate pentru pret
login

XVR Hibrid de la Uniview, suporta camere analog HD si IP cu rezolutie de pana la 5MP lite, capacitate 8 canale Analog + 4 canale IP (sau pana la 8 canale IP, exclus analog): TVI/AHD/CVI/CVBS/IP, playback sincron pe 4 canale HD sau 8 canale SD la o rezolutie maxima de 2MP, capacitate stocare 1 HDD maxim 8TB (neinclus). Suporta Audio over Coaxial pentru camere TVI. Accepta camere ce au protocol ONVIF si RTSP. Suporta detectia miscarii. Compatibil cu camere ce suporta rezolutii de 5MP@12fps / 4MP@15fps / 1080P@30fps / 720P@30fps.

  • Model / producator UNV (Uniview)
  • Camere suportate HDTVI/AHD/CVI, CVBS +4 ch. IP max 4MP
  • Inregistrare 5MPLite@6fps, 4MPLite@8fps, 1080Lite@12fps, 720P@12fps
  • Latime banda intrare 32Mbs / iesire 64Mbs
  • Compresie H.265, H.264
  • Redare 1-4 HD / 1-8 SD canale sincronizate
  • Intrari 8 x BNC; 1 x audio, LAN 10/100, 2xUSB
  • Iesiri HDMI, VGA, 1 audio
  • Stocare 1 x HDD SATA max. 8TB (neinclus)
  • Stream 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF
  • Audio 8 x audio over coaxial TVI, 1 x analogic RCA
  • Alarma IN/OUT Nu are
  • Alimentare 12V DC
  • Consum max. 8W (fara HDD)
  • Dimensiuni 260 × 226 × 47 mm
  • Greutate max. 1.1 Kg (fara HDD)
  • Temperatura operare -10°C ~+55°C

Documente si programe

Nume Fisier
Specificatii tehnice XVR301-08G4 UNV Datasheet XVR301-G3 Series-V1.02 EN.pdf Download
Certificat conformitate EMC E06057 CE EMC 2023-01-12 Network Video Recorder Digital Video Recorder.pdf Pentru download autentificati-va!
Certificat conformitate LVD E03429 CE LVD 2020-10-22.pdf Pentru download autentificati-va!
