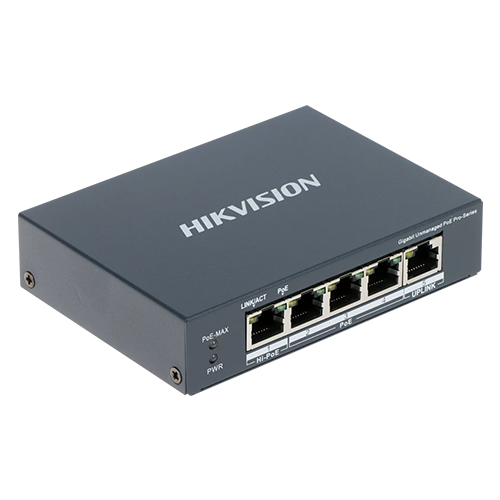

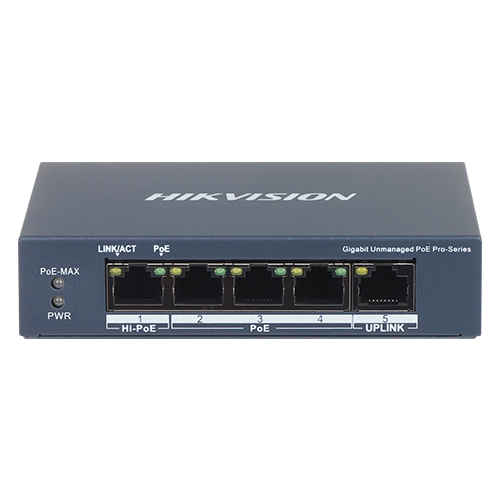

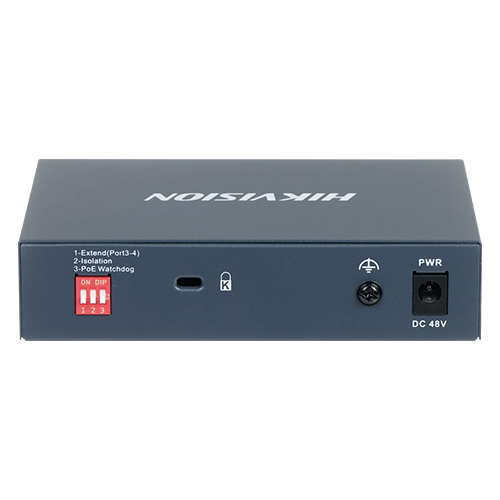

Switch 4 porturi PoE Gigabit, 1 port Hi-PoE, 1 port uplink 1G - HIKVISION - DS-3E0505HP-E

Loading

Switch 4 porturi PoE Gigabit, 1 port Hi-PoE, 1 port uplink 1G - HIKVISION
DS-3E0505HP-E

Autentificate pentru pret

login

Switch-ul DS-3E0505HP-E de la HIKVISION are urmatoarele caracteristici principale:

Transmisie cu raza lunga de pana la 300 m;
PoE watchdog pentru detectarea automata si repornirea camerelor care nu raspund;
Izolarea porturilor pentru a imbunatati securitatea retelei;
Wire-speed forwarding;
Store-and-forward switching;
Carcasa metalica solida de inalta rezistenta;
Design fiabil fara ventilator.

Producator HIKVISION
Protocol retea IEEE 802.3, IEEE 802.3u/x/ab
Porturi PoE 3 x RJ45 1 Gigabit PoE, 1 x RJ45 1 Gigabit Hi-PoE
Porturi Uplink 1 x RJ45 1 Gigabit
Capacitate switch 10 Gbps
Packet Forwarding Rate 7.44 Mpps
MAC Address Table 2K
Internal cache 1 Mbits
Standard PoE IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Putere PoE total 60W; port 1: max. 60W/port; port 2-4: max. 30W/port
Protectie supratensiune 6kV
Tensiune alimentare 48V DC 1.35A
Consum max. 65W
Temperatura operare 0°C ~ +40°C
Dimensiuni 121 mm × 88.1 mm × 27.6 mm
Greutate 0.27 kg

Documente si programe

Nume	Fisier
Specificatii tehnice producator (EN)_DS-3E0505HP-E	Specificatii tehnice producator (EN)_DS-3E0505HP-E_11843.pdf	Download
