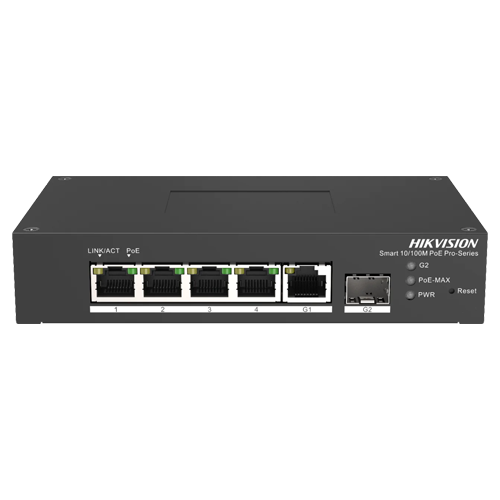

Switch Smart managed 4 porturi 10/100 Mbps PoE, 1 port Gigabit SFP, 1 port Gigabit RJ45 - HIKVISION

Autentificate pentru pret

Switch-ul DS-3T1306P-SI-HS de la Hikvision are urmatoarele caracteristici:

Standarde: Conform cu standardele Ethernet IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z si IEEE802.3ab;
Standarde PoE: Compatibil cu IEEE 802.3at/af pentru porturile PoE;
PoE Watchdog: Detectare si restartare automata a camerelor care nu raspund;
Management inteligent: Monitorizare topologie retea si monitorizare sanatate retea;
Performanta: Forwarding la viteza maxima si comutare tip store-and-forward;
Constructie durabila: Carcasa metalica de inalta rezistenta;
Protectie: Rating IP40 pentru protectie impotriva patrunderii si umezelii.

Producator HIKVISION
Porturi PoE 4 x 10/100 Mbps
Putere PoE total 60W - (max. 30W/port)
Standard PoE IEEE 802.3af, IEEE 802.3at
Porturi Uplink SFP 1 x 1Gbps
Porturi Uplink RJ45 1 x 1Gbps
Management Diverse functii: Port mirroring/Port Isolation/QoS/VLAN/STP/SNMP/LLDP/DHCP/ERPS, etc.
Protocoale suportate IEEE802.3 , IEEE802.3u, IIEEE802.3ab, IEEE802.3z, EEE802.3x
Tabela adrese MAC 2K
Capacitate switch 4.8 Gbps
Transmitere pachet date 3.57 Mpps
Memorie Cache 1 Mb
Protectie IP40, protectie impotriva umezelii
Tensiune alimentare adaptor 48V DC
Consum max. 65 W si 5 W idle
Temperatura operare -30° ~ +65 °C
Dimensiuni 158 × 101.2 × 31.6 mm
Greutate 400g
Material carcasa Metal

Nume	Fisier
Specificatii tehnice DS-3T1306P-SI-HS	Datasheet-of-DS-3T1306P-SI_HS_Smart-Managed-4-Port-10-or-100-Mbps-PoE-Switch_20230606.pdf	Download
Manual utilizare DS-3T1306P-SI-HS	UD28213B_Hikvision-Switch-Web_User-Manual_V3.0_20220725.pdf	Pentru download autentificati-va!
Certificat conformitate	CE-EMC_CERT_SHEM220800615801ATC_Ethernet_Switch_DS-3T1306P-SIHS ClassA_20220805.pdf	Pentru download autentificati-va!
